$ 79.886

TVP00WCI1335PF459 Datasheet PDF - Amphenol

Manufacturer:

Amphenol

Category:

Circular MIL Spec Connectors

Description:

Panel mt rcp shell/sz 13 22pn PCB st off

Pictures:

3D Model

Symbol

Footprint

Pinout

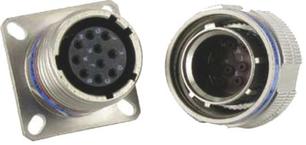

Product Pictures

TVP00WCI1335PF459 Datasheet PDF (32 Pages)

View Datasheet

Click page to view the detail

TVP00WCI1335PF459 Specifications

TYPE

DESCRIPTION

Number of Contacts

22 Contact

Gender

Female

Mounting Style

Panel, Solder

Current Rating

3 A

Operating Temperature (Max)

175 ℃

Operating Temperature (Min)

-65 ℃

Voltage Rating

400VAC, 550VDC

TVP00WCI1335PF459 Environmental

TVP00WCI1335PF459 Documents
