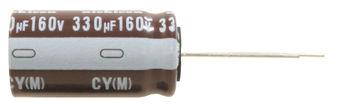

UCY2G470MHD3TN
$ 0.958
UCY2G470MHD3TN Datasheet PDF (2 Pages)
View Datasheet
Click page to view the detail

UCY2G470MHD3TN Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
2 Pin
Capacitance
47 µF
Capacitance Tolerance
±20 %
Case/Package
Radial, CAN
Pin Pitch
7.5 mm
Ripple Current
590 mA
Operating Temperature (Max)
105 ℃
Operating Temperature (Min)
-40 ℃
Voltage Rating
400 V

UCY2G470MHD3TN Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Packaging
Tape & Reel (TR)
Size-Height
20 mm
Size-Diameter
18 mm
Operating Temperature
-40℃ ~ 105℃
Life (Hours)
10000 h

UCY2G470MHD3TN Documents

Nichicon
2 Pages / 0.8 MByte
Nichicon
6 Pages / 0.69 MByte
Nichicon
5 Pages / 3.99 MByte

UCY2G470MHD3 Documents

Nichicon
47uF ±20% 400V Φ18mm 20mm
Nichicon
Cap Aluminum 47uF 400V 20% (18 X 20mm) Radial Cylindrical 7.5mm 590mA 10000 hr 105℃ Ammo Pack
