VEMT2500X01 Datasheet PDF - Vishay Semiconductor

Manufacturer:

Vishay Semiconductor

Category:

Phototransistor

Case Package:

SMD-2

Description:

VISHAY VEMT2500X01 Phototransistor, 850nm, 15°, 0.1W(1/10W), 2Pins

Pictures:

3D Model

Symbol

Footprint

Pinout

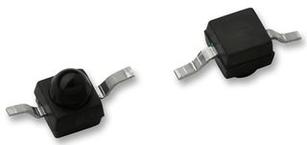

Product Pictures

Documentation:

VEMT2500X01 Datasheet (9 Pages)

VEMT2500X01 Datasheet PDF (9 Pages)

View Datasheet

Click page to view the detail

VEMT2500X01 Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Number of Pins

2 Pin

Case/Package

SMD-2

Number of Positions

2 Position

Wavelength

850 nm

Viewing Angle

30°

Peak Wavelength

850 nm

Polarity

NPN

Power Dissipation

100 mW

Power Consumption

100 mW

Breakdown Voltage (Collector to Emitter)

20 V

Input Power (Max)

100 mW

Operating Temperature (Max)

100 ℃

Operating Temperature (Min)

-40 ℃

Power Dissipation (Max)

100 mW

View Datasheet >

VEMT2500X01 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tape & Reel (TR)

Material

Silicon

Size-Height

2.77 mm

Operating Temperature

-40℃ ~ 100℃ (TA)

View Datasheet >
