VS-150K30A Datasheet PDF - Vishay Semiconductor

Manufacturer:

Vishay Semiconductor

Category:

Schottky Diodes

Case Package:

DO-205AA

Description:

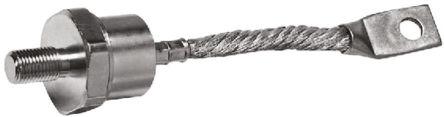

DIODE; 150A IF; 300V; 0.25K/W; DO205AA (DO-8); STUD TYPE; -40C; 200C

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

VS-150K30A Datasheet (4 Pages)

VS-150K30A Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

VS-150K30A Specifications

TYPE

DESCRIPTION

Number of Pins

2 Pin

Voltage Rating (DC)

300 V

Current Rating

150 A

Case/Package

DO-205AA

Output Current

≤150 A

Forward Voltage

1.33 V

Polarity

Standard

Thermal Resistance

0.25K/W (RθJC)

Forward Current

150 A

Max Forward Surge Current (Ifsm)

3.7 kA

Forward Current (Max)

150 A

Operating Temperature (Max)

200 ℃

Operating Temperature (Min)

-40 ℃

Junction Temperature (Max)

200 ℃

View Datasheet >

VS-150K30A Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Bulk

Size-Length

31.16 mm

Size-Width

27 mm

Size-Height

40.3 mm

Operating Temperature

-40℃ ~ 200℃

View Datasheet >

VS-150K30A Environmental

VS-150K30A Function Overview

VS-150K30A Documents

VS-150K30A Datasheet

Vishay Semiconductor

4 Pages / 0.22 MByte

VS-150K30A Other Datasheet PDF

Vishay Semiconductor

9 Pages / 0.2 MByte

VS-150K30A Product Catalog

Vishay Semiconductor

6 Pages / 0.16 MByte

VS150K30 Documents

VS-150K30A Datasheet PDF

VISHAY

DO-205AA 300V 150A 1.33V at 471A

VS-150K30A Datasheet PDF

Vishay Semiconductor

DIODE; 150A IF; 300V; 0.25K/W; DO205AA (DO-8); STUD TYPE; -40C; 200C

VS-150K30A Datasheet PDF

Vishay Precision Group

DIODE; 150A IF; 300V; 0.25K/W; DO205AA (DO-8); STUD TYPE; -40C; 200C

Part Datasheet PDF Search
