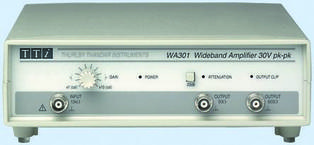

●The WA301 is a DC to 1MHz amplifier with a maximum output (e.m.f.) of 30 volts peak to peak from a 50R source impedance. A 600R output is also provided. The unit can provide up to 15 volts peak to peak into a 50R load and can drive up to 300mA peak into a low impedance or short circuit. Fully variable gain between x1 and x10 is provided by a rotary vernier with calibrated end stops. A -20dB output attenuator is also incorporated. An "output clip" LED is provided to warn if the output amplitude exceeds ±15V.

● Extends the output range of function generators

● 30 Volts peak to peak output swing

● DC to 1MHz bandwidth

● High impedance input, 0dB to +20dB gain

● 50 Ohm and 600 Ohm outputs

● 20dB switchable output attenuator

● Fully protected output
