10268-6212PC Datasheet PDF - 3M

Manufacturer:

Category:

D-Subminiature Connectors

Description:

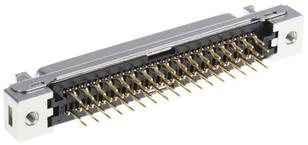

Conn Mini D Ribbon RCP 68POS 2.54mm Solder ST Thru-Hole 68 Terminal 1Port

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

10268-6212PC Datasheet (6 Pages)

Part Numbering System on2 Page

10268-6212PC Datasheet PDF (6 Pages)

View Datasheet

Click page to view the detail

10268-6212PC Specifications

TYPE

DESCRIPTION

Number of Contacts

68 Contact

Gender

Female

Mounting Style

Through Hole

Contact Plating

Gold Flash over Nickel, Gold

Current Rating

1 A

Insulation Resistance

500 MΩ

Number of Rows

2 Row

Pin Pitch

1.27 mm

Flammability Rating

UL 94 V-0

Number of Positions

68 Position

Current Rating (Max)

1 A

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-20 ℃

View Datasheet >

10268-6212PC Environmental

10268-6212PC Export Classifications

10268-6212PC Function Overview

10268-6212PC Documents

10268-6212PC Datasheet

6 Pages / 0.35 MByte

10268-6212PC Other Datasheet PDF

7 Pages / 0.36 MByte

10268-6212PC Drawing Diagrams

1 Pages / 0.04 MByte

10268-6212PC Product Catalog

32 Pages / 2.23 MByte

102686212 Documents

10268-6212PC Datasheet PDF

Conn Mini D Ribbon RCP 68POS 2.54mm Solder ST Thru-Hole 68 Terminal 1Port

10268-6212PL Datasheet PDF

Female 68 Way Straight Through Hole SCSI Connector 2.54mm Pitch, Solder

10268-6212VC Datasheet PDF

3M Mini D Ribbon (MDR) Connectors
