860160272006 Datasheet PDF - Wurth Electronics

Manufacturer:

Wurth Electronics

Category:

Single Capacitors

Case Package:

Radial

Description:

56uF ±20% 10V 144mA(100kHz) Φ5mm

Pictures:

3D Model

Symbol

Footprint

Pinout

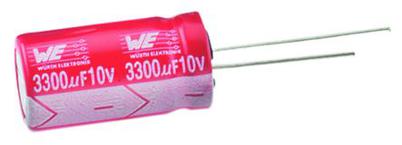

Product Pictures

Documentation:

860160272006 Datasheet (7 Pages)

860160272006 Datasheet PDF (7 Pages)

View Datasheet

Click page to view the detail

860160272006 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Voltage Rating (DC)

10 V

Capacitance

56 µF

Capacitance Tolerance

±20 %

Case/Package

Radial

Part Family

WCAP-ATLL

Ripple Current

144mA @100kHz

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

10 V

View Datasheet >

860160272006 Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tape & Box (TB)

Size-Height

11 mm

Size-Diameter

Φ5mm

Operating Temperature

-55℃ ~ 105℃

Life (Hours)

4000h @105℃

View Datasheet >
