ADS7044EVM-PDK Datasheet PDF - TI

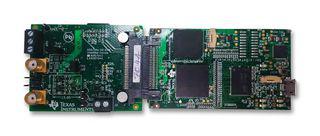

●The ADS7044EVM-PDK is an Evaluation Module for evaluate the operation and performance of ADS7044, an analogue-to-digital converter (ADC). The converter is a 12-bit successive approximation-register (SAR) ADC with differential input and maximum throughput of 1MSPS. The evaluation kit combines the board with simple capture card. The board includes the input drivers enabling the ADC to work within typical performance specifications.

● 3.3V Slave serial peripheral interface (SPI)

● Onboard OPA316 (10MHz bandwidth, rail-to-rail out) ADC input drivers

● USB port for computer interface
