BWR-5/1500-D24A-C
$ 63.036

BWR-5/1500-D24A-C Datasheet PDF - muRata

Manufacturer:
muRata
Category:
DC-DC Converters
Case Package:
C-14
Description:
Module DC-DC 24Vin 2Out 5V/-5V 1.5A 17W 6Pin Case C-14
Pictures:
3D Model
Symbol
Footprint
Pinout

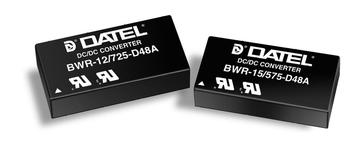

Product Pictures
Documentation:
BWR-5/1500-D24A-C Datasheet (9 Pages)
Package Outline Dimension on2 Page3 Page
Part Numbering System on2 Page3 Page
BWR-5/1500-D24A-C Datasheet PDF (9 Pages)
View Datasheet
Click page to view the detail

BWR-5/1500-D24A-C Specifications

TYPE
DESCRIPTION
Mounting Style
Through Hole
Number of Pins
6 Pin
Case/Package
C-14
Power Rating
15 W
Number of Outputs
2 Output
Output Voltage
±5 V
Output Power
17 W
Isolation Voltage
1.5 kV
Switching Frequency
330 kHz
Input Voltage (Max)
36 V
Input Voltage (Min)
18 V
Output Current (Max)
1.5A, 1.5A
Operating Temperature (Max)
85 ℃
Operating Temperature (Min)
-40 ℃
Input Voltage
18V ~ 36V
View Datasheet >

BWR-5/1500-D24A-C Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Not Recommended
Packaging
Tube
Size-Height
12.19 mm
Operating Temperature
-40℃ ~ 100℃
View Datasheet >

BWR-5/1500-D24A-C Documents

BWR-5/1500-D24A-C Datasheet
muRata
9 Pages / 0.17 MByte
BWR-5/1500-D24A-C Other Datasheet PDF
muRata
9 Pages / 0.25 MByte

BWR51500D24 Documents

BWR-5/1500-D24A-C Datasheet PDF
muRata
Module DC-DC 24Vin 2Out 5V/-5V 1.5A 17W 6Pin Case C-14
BWR-5/1500-D24AC-C Datasheet PDF
muRata
Isolated DC-DC Converters 15W 24V/+-5V+-1500mA POSITIVE ON/OFF
BWR-5/1500-D24AN-C Datasheet PDF
muRata
Module DC-DC 24Vin 2Out 5V/-5V 1.5A 17W 6Pin Case C-14
BWR-5/1500-D24AN Datasheet PDF
Datel
DC-DC Regulated Power Supply Module, 2 Output, BIPolar,
BWR-5/1500-D24A Datasheet PDF
muRata
Module DC-DC 2Out 5V/-5V 1.5A 17W 6Pin Case C-14
BWR-5/1500-D24AC Datasheet PDF
muRata
Module DC-DC 24Vin 2Out 5V/-5V 1.5A 17W 6Pin Case C-14
BWR-5/1500-D24A Datasheet PDF
C&D Technologies
DC-DC Regulated Power Supply Module, 2 Output, BIPolar, SMT-6/5
BWR-5/1500-D24A Datasheet PDF
Datel
DC-DC Regulated Power Supply Module, 2 Output, BIPolar,
BWR-5/1500-D24A-C Datasheet PDF
C&D Technologies
DC-DC Regulated Power Supply Module, 2 Output, BIPolar, ROHS COMPLIANT, SMT-6/5
BWR-5/1500-D24AC Datasheet PDF
C&D Technologies
DC-DC Regulated Power Supply Module, 2 Output, BIPolar, SMT-6
