CES-118-02-G-S-RA Datasheet PDF - Samtec

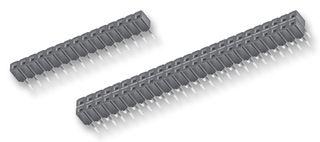

●The CES series from Samtec are closed entry low profile socket strips. These through hole socket strips mates with Samtec TLW, TSW, MTLW, MTSW, HW, EW, ZW, DW, HTSW, PHT and HMTSW series of connectors.

● Orderable with single/dual rows (-S/-D options)

● Pitch spacing is 2.54mm (1 to 50 contacts per row) with right angle (-RA) orientation

● High operating temperature range of -55°C to 125°C for 20µ" gold plated contacts

● Black glass filled polyester insulator material

● Voltage rating is 400VAC

● Contact resistance is 10mohm

● Dual leaf contact system

● Complies with UL E111594 and CSA 090871_0_000 standards

● Contact material is phosphor bronze
