Part 3D Model

$ 0.006

CRCW120620K0FKTA Datasheet PDF - VISHAY

Manufacturer:

VISHAY

Category:

Chip SMD Resistors

Case Package:

1206

Description:

1206 20kΩ ±1% 0.25W(1/4W) ±100ppm/℃

Pictures:

3D Model

Symbol

Footprint

Pinout

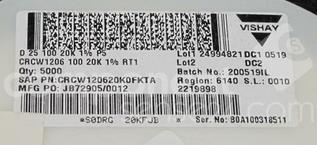

Product Pictures

Documentation:

CRCW120620K0FKTA Datasheet (8 Pages)

Part Numbering System on2 Page

CRCW120620K0FKTA Datasheet PDF (8 Pages)

View Datasheet

Click page to view the detail

CRCW120620K0FKTA Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Number of Pins

2 Pin

Voltage Rating (DC)

200 V

Case/Package (SI)

3216

Case/Package

1206

Power Rating

0.25 W

Power Dissipation

250 mW

Part Family

Vishay_Dale

Resistance

20000 Ω

Resistance Tolerance

±1 %

Operating Temperature (Max)

155 ℃

Operating Temperature (Min)

-55 ℃

View Datasheet >

CRCW120620K0FKTA Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tape & Reel (TR)

Size-Length

3.20 mm

Size-Width

1.60 mm

Size-Height

0.55 mm

Temperature Coefficient

±100 ppm/℃

View Datasheet >

CRCW120620K0FKTA Environmental

CRCW120620K0FKTA Function Overview

CRCW120620K0FKTA Documents

CRCW120620K0FKTA Datasheet

VISHAY

8 Pages / 0.14 MByte

CRCW120620K0FKTA Other Datasheet PDF

VISHAY

8 Pages / 0.12 MByte
