CRCW120627R0FKEAHP Datasheet PDF - VISHAY

Manufacturer:

VISHAY

Category:

Chip SMD Resistors

Case Package:

1206

Description:

1206 27Ω ±1% 3/4W ±100ppm/℃

Pictures:

3D Model

Symbol

Footprint

Pinout

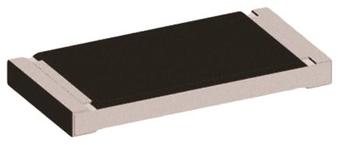

Product Pictures

Documentation:

CRCW120627R0FKEAHP Datasheet (10 Pages)

Part Numbering System on3 Page

CRCW120627R0FKEAHP Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

CRCW120627R0FKEAHP Specifications

TYPE

DESCRIPTION

Mounting Style

Surface Mount

Capacitance Tolerance

±1 %

Case/Package (SI)

3216

Case/Package

1206

Power Rating

0.75 W

Part Family

Vishay_Dale

Resistance

27 Ω

Resistance Tolerance

±1 %

Operating Temperature (Max)

155 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

200 V

View Datasheet >

CRCW120627R0FKEAHP Size & Package

TYPE

DESCRIPTION

Packaging

Tape & Reel (TR)

Size-Length

3.2 mm

Size-Width

1.6 mm

Size-Height

0.6 mm

Operating Temperature

-55℃ ~ 155℃

Temperature Coefficient

±100 ppm/℃

View Datasheet >

CRCW120627R0FKEAHP Environmental

CRCW120627R0FKEAHP Function Overview

CRCW120627R0FKEAHP Documents

CRCW120627R0FKEAHP Datasheet

VISHAY

10 Pages / 0.14 MByte
