EEUFM1E182L Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Single Capacitors

Description:

1.8F 25V 3630mA Φ12.5mm 30mm

Pictures:

3D Model

Symbol

Footprint

Pinout

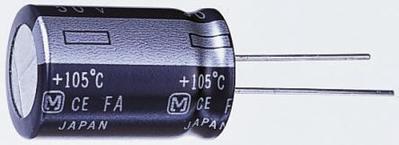

Product Pictures

Documentation:

EEUFM1E182L Datasheet (4 Pages)

EEUFM1E182L Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

EEUFM1E182L Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

25.0 V

Capacitance

1800 µF

Capacitance Tolerance

±20 %

Ripple Current

3630 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-40 ℃

Voltage Rating

25 VDC

View Datasheet >

EEUFM1E182L Environmental

EEUFM1E182L Function Overview

EEUFM1E182L Documents

EEUFM1E182L Datasheet

Panasonic

4 Pages / 0.1 MByte

EEUFM1E182L Other Datasheet PDF

Panasonic

4 Pages / 0.1 MByte

EEUFM1E182 Documents

EEU-FM1E182L Datasheet PDF

Panasonic

Cap Aluminum Lytic 1800uF 25V 20% (12.5 X 30mm) Radial 5mm 3630mA 7000H 105℃ Bulk

EEU-FM1E182S Datasheet PDF

Panasonic

Cap Aluminum Lytic 1800uF 25V 20% (16 X 20mm) Radial 7.5mm 3300mA 5000H 105℃ Bulk

EEUFM1E182L Datasheet PDF

Panasonic

1.8F 25V 3630mA Φ12.5mm 30mm

EEUFM1E182S Datasheet PDF

Panasonic

1.8F 25V 3300mA Φ16mm 20mm

EEU-FM1E182SB Datasheet PDF

Panasonic

Cap Aluminum Lytic 1800uF 25V 20% (16 X 20mm) Radial 7.5mm 3300mA 5000H 105℃ Ammo
