EVAL-ADT7X20EBZ Datasheet PDF - ADI

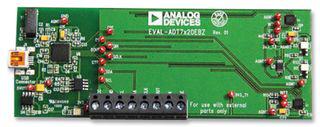

●The EVAL-ADT7X20EBZ is an evaluation kit that allows the user to evaluate the performance of the ADT7320 and ADT7420 temperature sensors. The ADT7420 and ADT7320 are high accuracy digital temperature sensor offering breakthrough performance over a wide industrial range. These devices contains an internal band gap reference, a temperature sensor and a 16bit ADC to monitor and digitize the temperature to 0.0078°C resolution. The kit consists of two boards, a main board connected to the PC through the USB port and an external board. The external board and flex board are attached to the main board using wires that can withstand high temperatures and can be used for remote temperature measurements in oil baths or ovens where the temperature exceeds the specifications of the USB cable. The evaluation software allows the user to select the main board or the external board, as well as the desired temperature sensor device.

● Powered from USB port

● No additional power supply required

● PC software for control of temperature sensors

● Windows 2000 and higher operating systems are supported

● Additional external evaluation board for remote temperature measurements (ADT7x20EBZ)

● Additional external flex boards for faster thermal response

●ESD sensitive device, take proper precaution while handling the device.
