FX10A-168P-SV1(71)
$ 2.222

FX10A-168P-SV1(71) Datasheet PDF - Hirose Electric

Manufacturer:
Hirose Electric
Category:
Board to Board Connectors
Case Package:
SMD
Description:
HIROSE(HRS) FX10A-168P-SV1(71) Stacking Board Connector, Guide, FX10 Series, 168Contacts, Plug, 0.5mm, Surface Mount, 2Rows
Pictures:
3D Model
Symbol
Footprint
Pinout

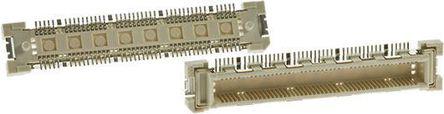

Product Pictures
Documentation:
FX10A-168P-SV1(71) Datasheet (24 Pages)
Pinout Diagram on4 Page15 Page17 PageHot
Part Numbering System on8 Page15 Page
FX10A-168P-SV1(71) Datasheet PDF (24 Pages)
View Datasheet
Click page to view the detail

FX10A-168P-SV1(71) Specifications

TYPE
DESCRIPTION
Number of Contacts
168 Contact
Gender
Male
Mounting Style
Surface Mount
Contact Plating
Gold
Current Rating
300 mA
Insulation Resistance
100MΩ @100VDC
Case/Package
SMD
Number of Rows
2 Row
Number of Positions
168 Position
Contact Resistance
<60mΩ @100mA
Current Rating (Max)
0.3 A
Voltage Rating (Max)
50 VAC
Voltage Rating
50 VAC
Maximum Contact Resistance (Max)
60 mΩ
View Datasheet >

FX10A-168P-SV1(71) Size & Package

TYPE
DESCRIPTION
Product Lifecycle Status
Active
Housing Color
Beige
Packaging
Tray
Contact Material
Phosphor Bronze
Size-Length
49.1 mm
Size-Width
5.9 mm
Size-Height
4.5 mm
Operating Temperature
-55℃ ~ 85℃
View Datasheet >

FX10A-168P-SV1(71) Documents

FX10A-168P-SV1(71) Datasheet
Hirose Electric
24 Pages / 1.05 MByte
FX10A-168P-SV1(71) Other Datasheet PDF
Hirose Electric
24 Pages / 0.84 MByte
FX10A-168P-SV1(71) Drawing Diagrams
Hirose Electric
1 Pages / 0.17 MByte
FX10A-168P-SV1(71) Product Catalog
Hirose Electric
20 Pages / 0.91 MByte

FX10A168 Documents

FX10A-168S-SV Datasheet PDF
Hirose Electric
Conn Board to Board F 168POS 0.5mm Solder ST SMD Bag
FX10A-168P-SV(71) Datasheet PDF
Hirose Electric
HIROSE(HRS) FX10A-168P-SV(71) Stacking Board Connector, 168Contacts, Plug, 0.5mm, Surface Mount, 2Rows
FX10A-168P-SV1(71) Datasheet PDF
Hirose Electric
HIROSE(HRS) FX10A-168P-SV1(71) Stacking Board Connector, Guide, FX10 Series, 168Contacts, Plug, 0.5mm, Surface Mount, 2Rows
FX10A-168P-SV(85) Datasheet PDF
Hirose Electric
CONN HEADER 168POS W/POST SMD
FX10A-168S-SV(85) Datasheet PDF
Hirose Electric
HIROSE(HRS) FX10A-168S-SV(85) Stacking Board Connector, FX10 Series, 168Contacts, Receptacle, 0.5mm, Surface Mount, 2Rows
FX10A-168S-SV(21) Datasheet PDF
Hirose Electric
Conn Board to Board F 168POS 0.5mm Solder ST SMD Reel
FX10A-168P-SV(91) Datasheet PDF
Hirose Electric
Conn Wire to Board M 168POS 0.5mm Solder SMD
FX10A-168P-SV1(91) Datasheet PDF
Hirose Electric
Conn Board to Board HDR 168POS 0.5mm Solder ST SMD Reel
FX10A-168S-SV(93) Datasheet PDF
Hirose Electric
Conn Board to Board RCP 168POS 0.5mm Solder ST SMD Tray
FX10A-168P-SV3(85) Datasheet PDF
Hirose Electric
HIROSE(HRS) FX10A-168P-SV3(85) Stacking Board Connector, FX10 Series, 168Contacts, Header, 0.5mm, Surface Mount, 2Rows
