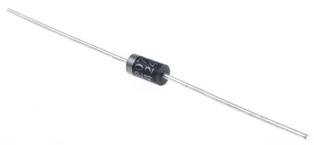

HER207G R0 Datasheet PDF - Taiwan Semiconductor

Manufacturer:

Taiwan Semiconductor

Category:

Schottky Diodes

Case Package:

DO-15

Description:

Diode Switching 800V 2A 2Pin DO-15 T/R

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

HER207G R0 Datasheet (1 Pages)

HER207G R0 Datasheet PDF (1 Pages)

View Datasheet

Click page to view the detail

HER207G R0 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

DO-15

Reverse recovery time

75 ns

Forward Current

2 A

Max Forward Surge Current (Ifsm)

60 A

Maximum Forward Voltage (Max)

1.7 V

Forward Current (Max)

2 A

Operating Temperature (Max)

150 ℃

Operating Temperature (Min)

-65 ℃

View Datasheet >

HER207G R0 Size & Package

TYPE

DESCRIPTION

Packaging

Tape & Reel (TR)

Size-Length

7.6 mm

Size-Width

3.6 mm

Size-Height

3.6 mm

View Datasheet >

HER207G R0 Environmental

HER207G R0 Documents

HER207G R0 Datasheet

Taiwan Semiconductor

1 Pages / 0.01 MByte

HER207 Documents

HER207 Datasheet PDF

MDD

2A 800V

HER207 Datasheet PDF

Good-Ark Electronics

DO-204AC(DO-15) 800V 2A 1.7V

HER207 Datasheet PDF

HY Electronic

Rectifier Diode, 1 Phase, 1 Element, 2A, 800V V(RRM), Silicon, DO-15,

HER207 Datasheet PDF

DC Components

Diode: rectifying; THT; 800V; 2A; Package: Ammo Pack; DO15; 100ns

HER207 Datasheet PDF

Micro Commercial Components

2A High Efficient Rectifiers 50 to 1000 Volts

HER207 Datasheet PDF

Leshan Radio

DO-15 800V 2A 1.85V

HER207 Datasheet PDF

EIC

HIGH EFFICIENT

HER207 Datasheet PDF

Rectron

HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Ampere)

HER207 Datasheet PDF

Rectron Semiconductor

HIGH EFFICIENCY RECTIFIER (VOLTAGE RANGE 50 to 1000 Volts CURRENT 2.0 Ampere)

HER207 Datasheet PDF

Taiwan Semiconductor

Rectifier: High Efficient

Part Datasheet PDF Search
