Part 3D Model

$ 0.057

L-34GD Datasheet PDF - Kingbright

Manufacturer:

Kingbright

Category:

Based LEDs

Case Package:

T-1

Description:

LED Uni-Color Green 565nm 2Pin T-1 T/R

Pictures:

3D Model

Symbol

Footprint

Pinout

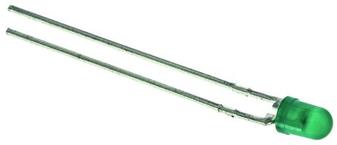

Product Pictures

Documentation:

L-34GD Datasheet (6 Pages)

Package Outline Dimension on1 Page

L-34GD Datasheet PDF (6 Pages)

View Datasheet

Click page to view the detail

L-34GD Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Case/Package

T-1

Number of Positions

2 Position

Forward Voltage

2.5 V

Wavelength

568 nm

Viewing Angle

60°

Peak Wavelength

565 nm

Maximum Forward Voltage (Max)

2.5 V

Forward Current (Max)

25 mA

Operating Temperature (Max)

85 ℃

Operating Temperature (Min)

-40 ℃

Power Dissipation (Max)

62.5 mW

View Datasheet >

L-34GD Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Active

Packaging

Tape & Reel (TR)

Color

Green

Lens Color

Green

View Datasheet >

L-34GD Environmental

L-34GD Documents

L-34GD Datasheet

Kingbright

6 Pages / 0.57 MByte

L-34GD Other Datasheet PDF

Kingbright

5 Pages / 0.46 MByte
