MKT1813522255 Datasheet PDF - Vishay Semiconductor

Manufacturer:

Vishay Semiconductor

Category:

Single Capacitors

Case Package:

1813

Description:

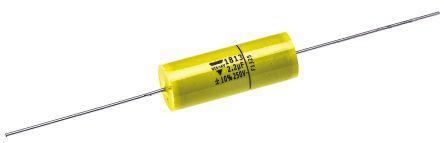

Cap Film 2.2uF 250V PET 10% (13 X 31.5mm) Axial 100℃ Bulk

Pictures:

3D Model

Symbol

Footprint

Pinout

Product Pictures

Documentation:

MKT1813522255 Datasheet (15 Pages)

MKT1813522255 Datasheet PDF (4 Pages)

View Datasheet

Click page to view the detail

MKT1813522255 Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

250 V

Voltage Rating (AC)

160 V

Capacitance

2.2 µF

Capacitance Tolerance

±10 %

Case/Package

1813

Operating Temperature (Max)

100 ℃

Operating Temperature (Min)

-55 ℃

View Datasheet >

MKT1813522255 Size & Package

TYPE

DESCRIPTION

Size-Length

31.5 mm

Dielectric Material

Polyester

Operating Temperature

-55℃ ~ 100℃

View Datasheet >

MKT1813522255 Environmental

MKT1813522255 Documents

MKT1813522255 Datasheet

Vishay Semiconductor

15 Pages / 0.13 MByte
