EEUFC0J103S Datasheet PDF - Panasonic

Manufacturer:

Panasonic

Category:

Aluminum Electrolytic Capacitors

Case Package:

Radial, CAN

Description:

10F 6.3V 2740mA Φ18mm 25mm

Pictures:

3D Model

Symbol

Footprint

Pinout

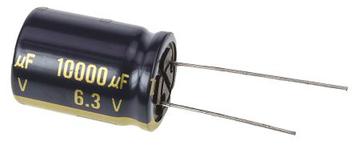

Product Pictures

Documentation:

EEUFC0J103S Datasheet (10 Pages)EEUFC0J103S User Reference Manual Guide (6 Pages)

EEUFC0J103S Datasheet PDF (10 Pages)

View Datasheet

Click page to view the detail

EEUFC0J103S Specifications

TYPE

DESCRIPTION

Mounting Style

Through Hole

Number of Pins

2 Pin

Voltage Rating (DC)

6.30 V

Operating Voltage

6.3 VDC

Capacitance

10000 µF

Capacitance Tolerance

±20 %

Case/Package

Radial, CAN

Pin Pitch

7.5 mm

Ripple Current

2740 mA

Operating Temperature (Max)

105 ℃

Operating Temperature (Min)

-55 ℃

Voltage Rating

6.3 V

View Datasheet >

EEUFC0J103S Size & Package

TYPE

DESCRIPTION

Product Lifecycle Status

Unknown

Packaging

Each

Size-Length

25.0 mm

Size-Height

25 mm

Size-Diameter

18.0 mm

Operating Temperature

-55℃ ~ 105℃

Life (Hours)

5000h @105℃

View Datasheet >
